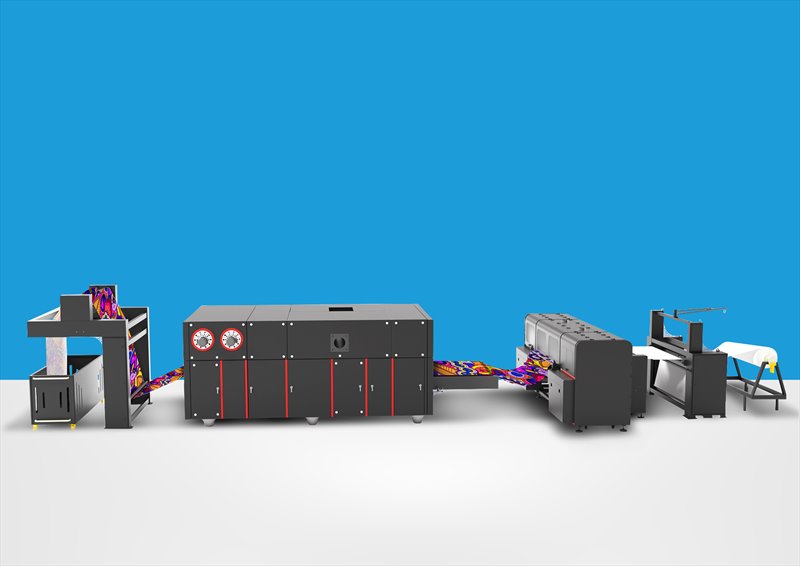

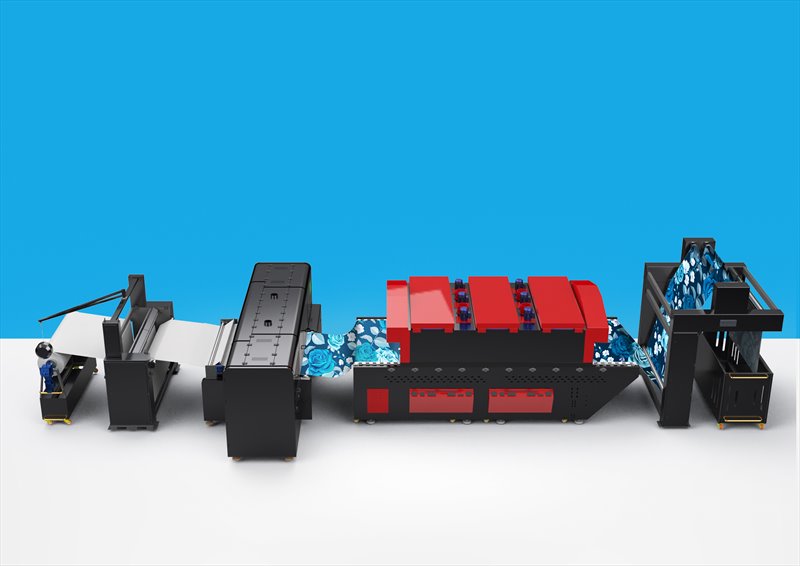

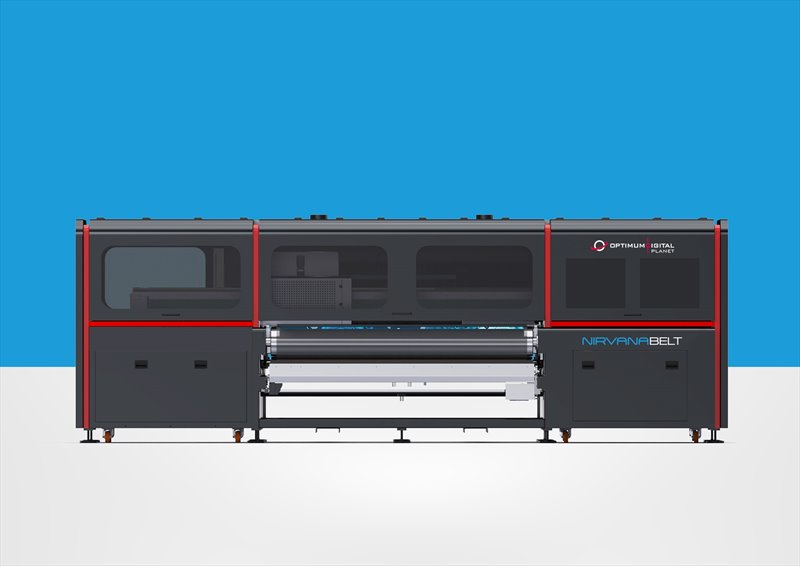

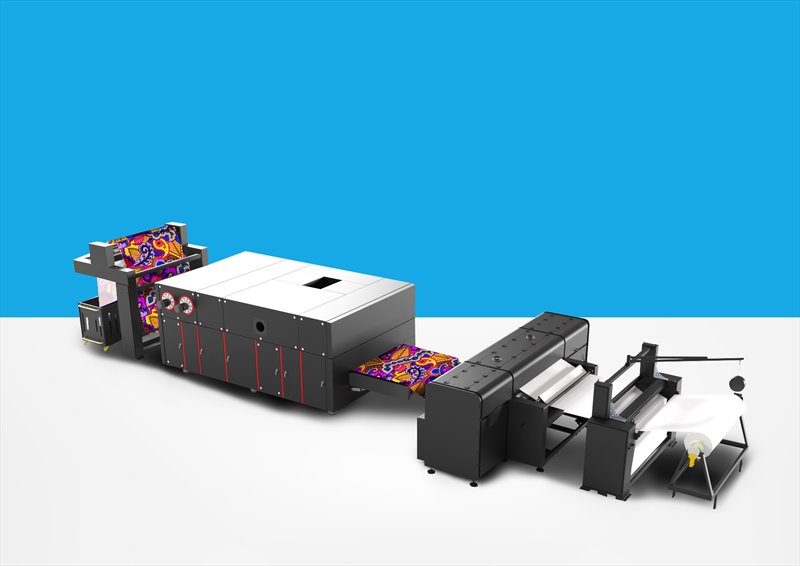

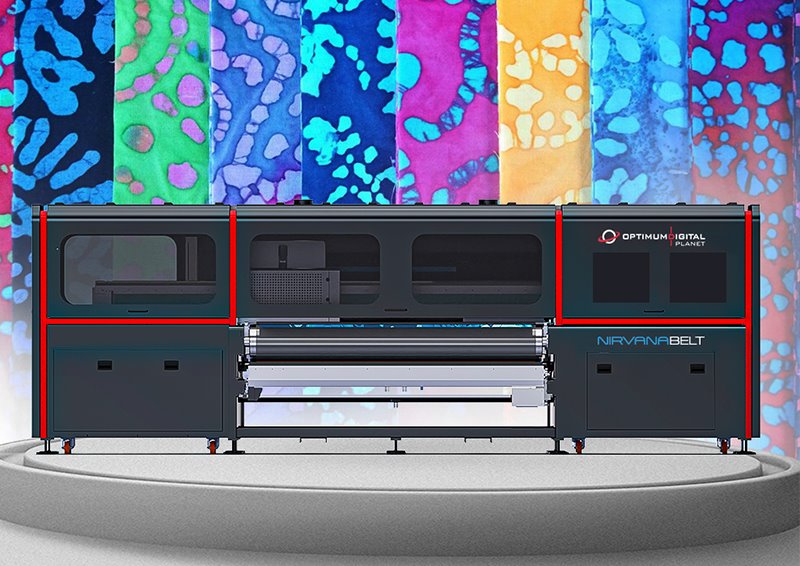

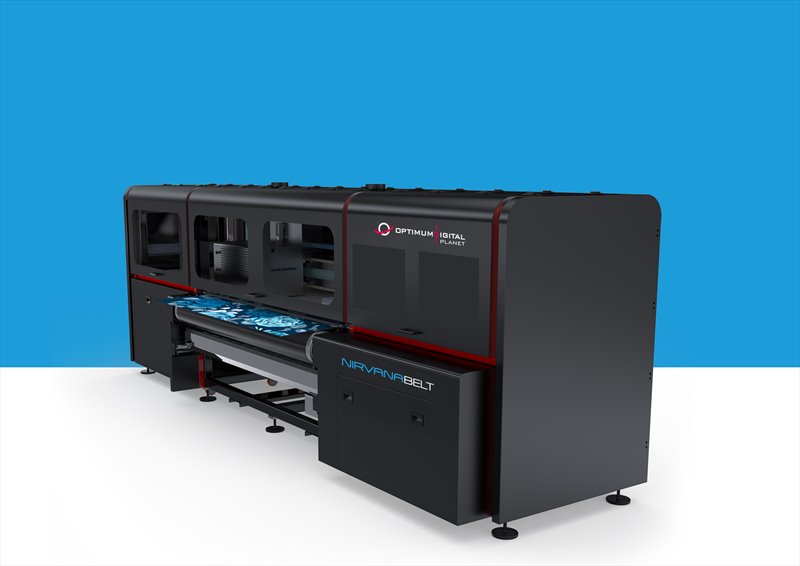

ONE-STEP SOLUTION TO PRINT ON ALL FABRICS WITHOUT PRE OR POST TREATMENT

Print Speed: Up to 800m²/h

Printing Width: 2.1m and 3.2m

Fabric Types: Cotton, Polyster, Poly-Cotton, Nylon, Silk, Viscose, Linen, Spandex/Lycra Blends, Denim Etc.

Application Areas: Fabrics, Dresses, T-shirts, Jackets, Suits, Tops, Beachwear, Leggings & Pants, Denim & Jeans, Bags, Pillows, Furniture, Upholstery, Custom Etc.



Default Printhead Konica Minolta 1024i
Variable Drop 6pl - 13pl
Printhead Options 4 / 6 / 8 / 12 / 16 / 32 (max 4 rows)
Color Options 4 color - 6 color - 8 color

Ink Compatibility

Eco-Pigment / Pigment / Disperse / Reactive / Acid / Sublimation

Ink Tank System Open System - 5kg capacity
Printing Width 2.1m - 3.2m

Media Type

Elastic and non-elastic textiles

Media Drying System

Industrial Drying System

Media Feeding System

Industrial Feeding System

Max Media Weight

250 kg / 45 cm

RIP Software

Neo-Stampa Optimum Digital Special Edition
Caldera Textile Pro Enterprise

Graphical User Interface (GUI)

ODP Print 2

Power Requirement

Single Phase: 220 VAC / 25A (for machine)
Three Phase: 380 VAC / 32A (for dryer)

Dimensions (With Fixation)

5720 mm x 2300 mm x 2200 mm

Compressed Air

0,6 MPa @ 2L / min

Machine Weight

2800 kg

Machine Weight (with included optionals)

5200 kg

Print on cotton, viscose, polyester and more with the same ink and machine
5,166 sqf/h printing at 2pass with 32 printheads
Eliminate wastewater, chemical pollutants and high power consumption
No pre or post treatment, washing or steaming required
Print with the highest fastness
Certified Greenguard, GOTS and Oeko-tex and Green to Wear
Machine Features Printing Features
Smart automatic head cleaning system Up to 8 colors per row for vibrant and colorful prints
Separate industrial drying system included Easy to use practical washing unit for reduced down time
Industrial sticky belt activated with heated press roller Potential for uninterrupted 24/7 printing operations
Integrated spiral belt brushes to eliminate dirt build up Low vibrations from strong frame for accurate dotting
Aluminium frame and double carriage rail Reliable 1-pass printing at 800 m²/h
Integrated industrial media feeding system Spare-parts and inks inventory at all locations
Safety trigger system for printhead protection In-house color specialist for customized color profiling
Closed design system for safe operation and reduced noise
Magnetic linear motor rail for smooth carriage movement

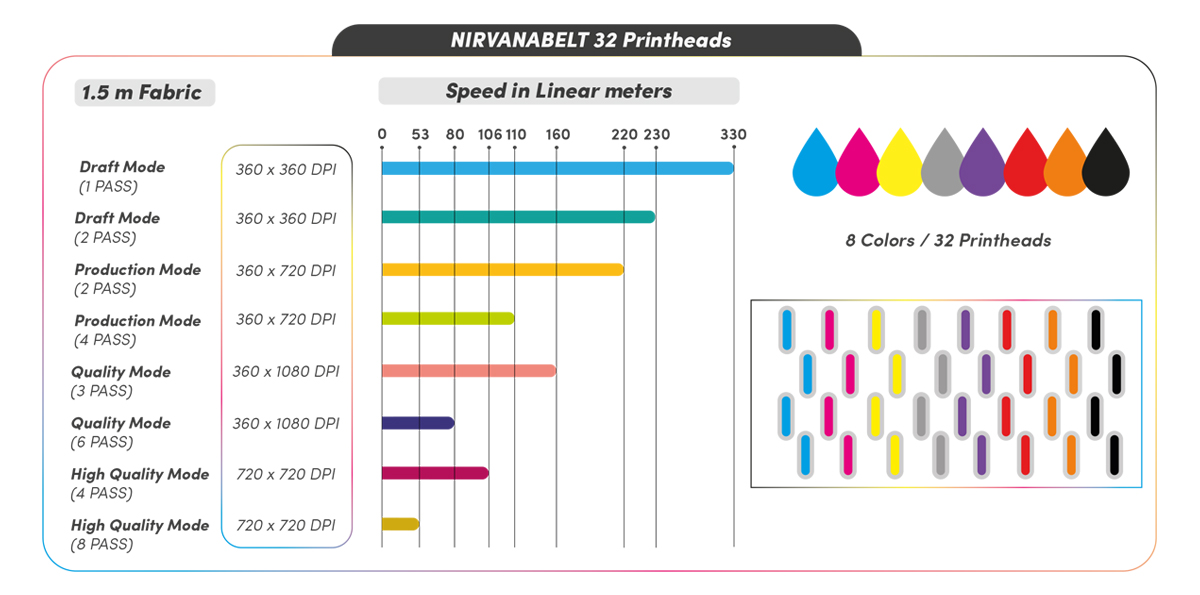

Large carriage for up to 32 heads in 4 rows
uygulamatekstil 0003 masaörtüsü tablecloth-358x232Non-Elastic Apparel



hali baskiTable Cloth

Yastık-yorgan-kiliflari-BaskiSportswear



dosemeli-kumas-baskiCurtain



Spor Giyim BaskısıBed Covers



duvar kağıdıFlags



bayrak baskıHandkerchief



Çarşaf Baskı Upholstery



Elbise Baskı Elastic Apparel
gots certificate



oeko tex certificate



green wear certificate



green guard certificate
