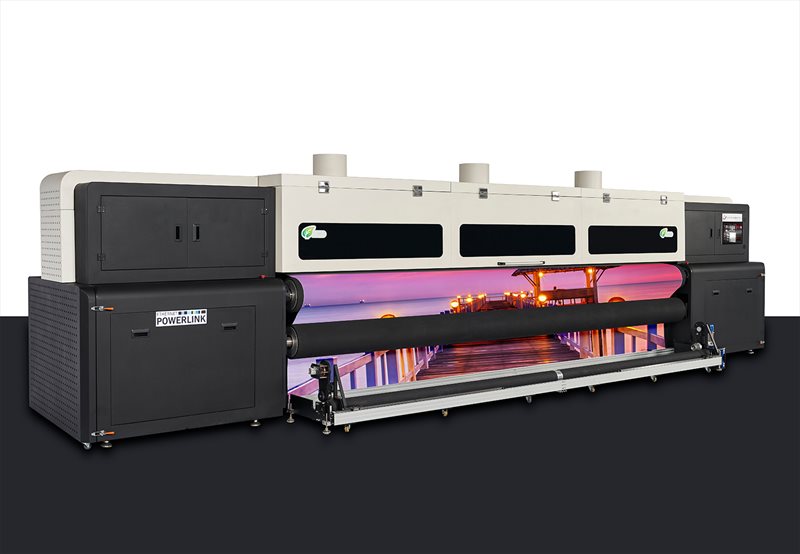

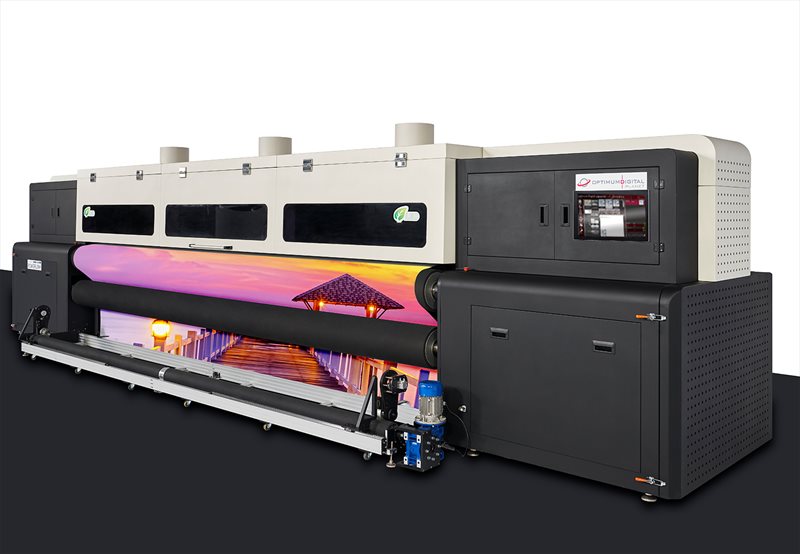

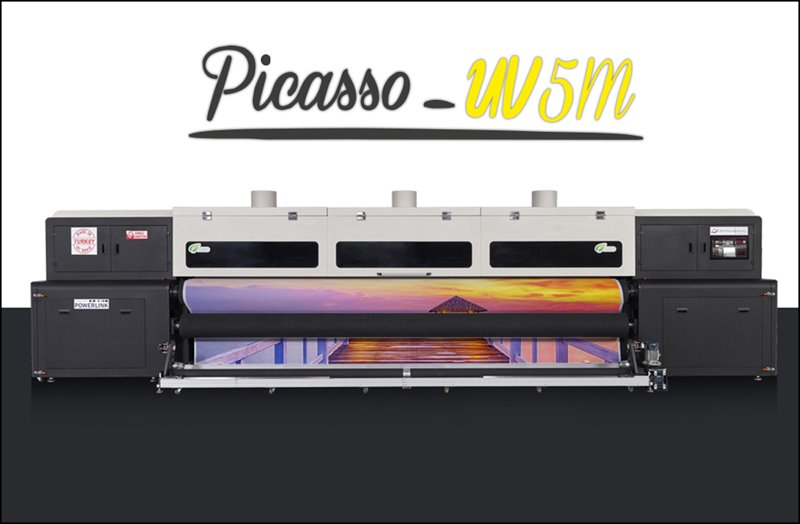

PICASSO UV 5M

UV PRINTER - 5 meter

✓ Print Speed: 200m²/h

✓ Print Head: Konica Minolta

✓ Print Width: 5000mm

Large format printer with 5M printing width, 200m² per hour with Konica Minolta Printheads.

Technical Specifications

Print Width

Up to 5000 mm

Technology

Drop - On - Demand Piezo Inkjet Technology

Control System

 PLC System

Color Scale

4 Colours (CMYK) Optional Colours LC+LM+W+Varnish

Printhead

Konica Minolta 1024-i /14 pL
Printhead Quantity Up to 16

Resolutions

Up to 1440 DPI

Material Thickness

 Up to 20 mm
RIP Software

Caldera
Machine Weight 3000 kg.
Dimensions 8200mm x 2600mm x 1850mm
Power Requirement 230V(+/-) 10% / 30A / 50 HZ
Automatic Cleaning Recycling System
Curing System LED Curing System

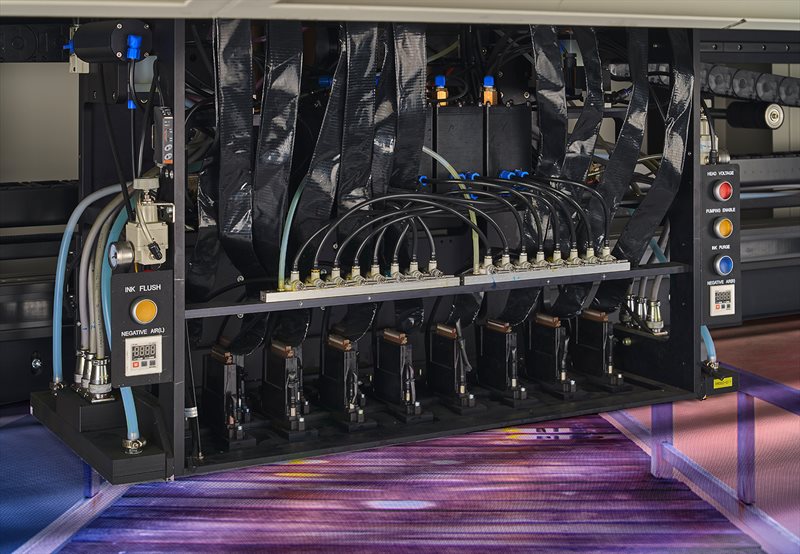

Konica Minolta 1024-i / 14 pL

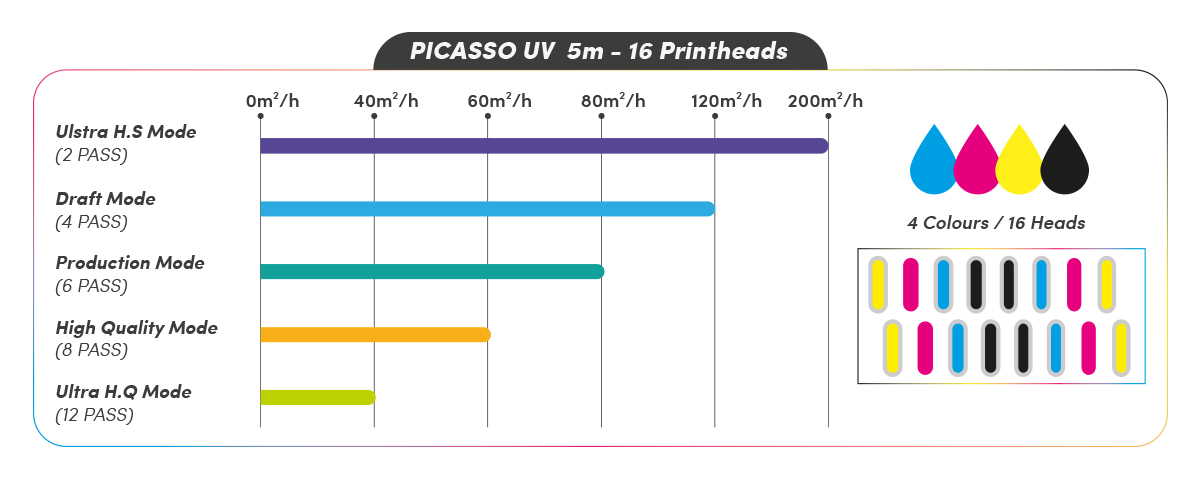

Speed Chart



hiz-grafigi

Uygulama Alanları



bilboard-baskiBilboard Printing



folyo-baskiVinyl Printing



sign-boardDay/Night Backlits



bina-giydirme-baskiBuilding Wraps



poster-printPoster Printing



afis-baskiBanner



roll-up-printRoll-up Printing



booth-cladding Booth Cladding



window-clings-gaphics Window Clings / Graphics



wall-graphics Wall Graphic



fleetvehiclegraphics Fleet Vehicle Graphics



tradeshow-graphics Tradeshow Graphics



indoor-murals Indoor Murals



indoor-hanging-banners Indoor Hanging Banners



bus-shelters Bus Shelters



exhibition-graphics Exhibition Graphics
