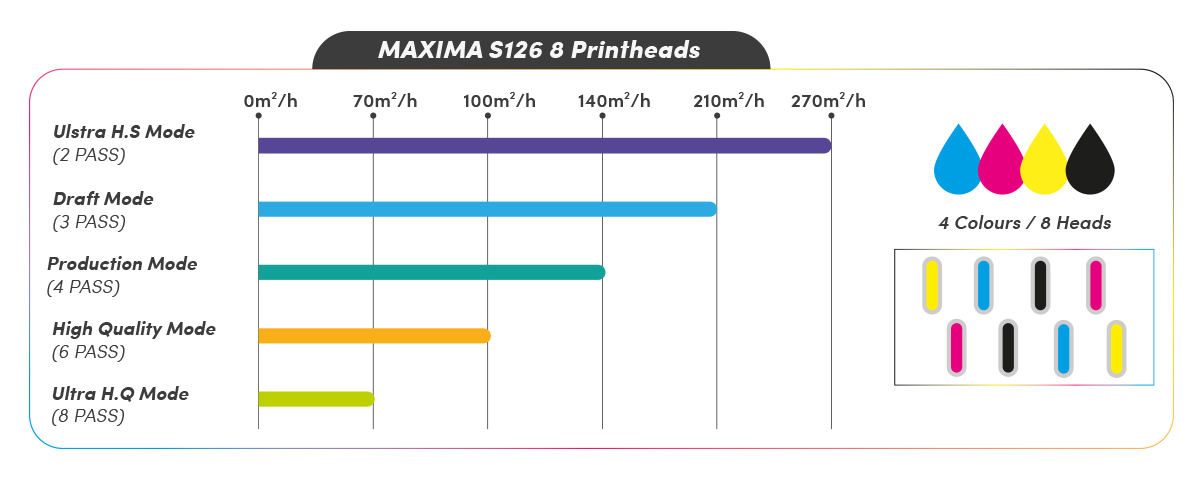

✓ Print Speed: 270m²/h

✓ Print Head: Konica Minolta

✓ Print Width: 3200mm

Default Printhead

Konica Minolta 1024i

Variable Drop

6 pl - 13 pl

Printhead Options

4 / 6 / 8 (max 2 rows)

Color Scale

4 color - 6 color

Ink Compatibility

Eco-Solvent, Solvent, Sublimation

Ink Tank System Open System - 5kg capacity

Max Print Width

Standard: 320cm (126”)

Media Type

Self-Adhesive Vinyl, Banner, Bilboards and more

Media Drying System

Industrial Drying System
Media Feeding System

Included Feeding System

RIP Software Caldera GrandRip+
Optimum Digital Edition (Optional)
Max Media Weight 300kg / 661lbs
Graphical User Interface (GUI) ODP Print 2

Power Requirements

Single phase 220VAC 25A

Compressed Air 0,6 Mpa @ 2L/min
Printer Dimensions 1365mm x 5245mm x 1635mm
Net Printer Weight 1,850kg
Machine Features Advanced Recirculation System
Smart automatic head cleaning system

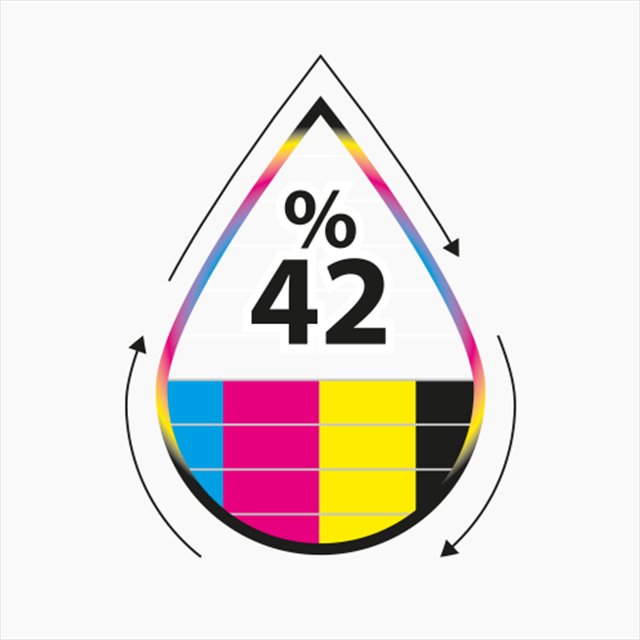

Optimum's Advanced Recirculation System has been designed and developed to eliminate any need for a waste tank during purging. The waste ink is filtered and circulated back to the main tanks saving up to 42% of ink consumption.





Advanced Recirculation System that saves up to 42% ink cost
High performance dryer at high speeds
IGUS energy chains for smooth motion control
Aluminium frame and double carriage rail


bilboard-baskiBilboard Print


folyo-baskiVinyl Print


sign-boardSignboard Print


bina-giydirme-baskiBuilding Wraps


poster-printPoster Print




roll-up-printRoll-up Print


stand-giydirme Booth Cladding
