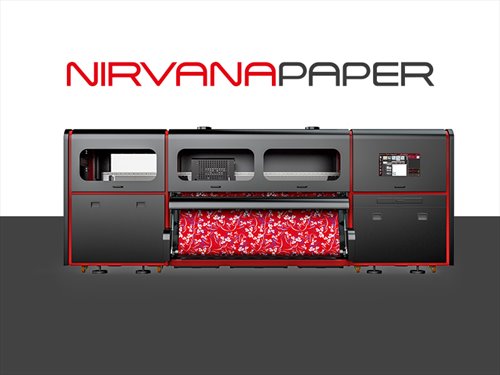

NIRVANA PAPER

PAPER & DIRECT-TO-FABRIC PRINTING

✓ Print Speed: 560m²/h

✓ Print Head: Industrial Printheads

✓ Print Width: 2050 mm & 3200 mm

Default Printhead Kyocera KJ4B - 600 DPI
Variable Drop 5pl - 73pl
Printhead Options 4 / 6 / 8 / 12 / 16 (max 2 rows)
Color Options 4 color - 6 color - 8 color

Ink Compatibility

Sublimation / Pigment / Reactive

Ink Tank System Open System - 5kg capacity
Printing Width 2050 mm

Media Type

Paper, non-elastic textile, plastic film

Media Drying System

Integrated Hybrid Drying System

Media Feeding System

Industrial Jumbo Roll Feeder
Vacuum System

Max Media Weight

500 kg / 27,5 cm diameter

RIP Software

Neo-Stampa Optimum Digital Special Edition
Caldera Textile Pro Enterprise

Graphical User Interface (GUI)

ODP Print 2

Power Requirement

Single Phase: 220 VAC / 25A

Printer Dimensions

5500 mm x 2700 mm x 1500 mm

Compressed Air

0,6 MPa @ 2L / min

Net Printer Weight

2600 kg

Net Machinery Weight

3500 kg

Machine Features Printing Features
Smart automatic head cleaning system Potential for uninterrupted 24/7 printing operations
Integrated hybrid drying unit under machine Low vibrations from strong frame for accurate dotting
Integrated vacuum generator with compressed air Up to 1,100lbs (500kg) and 18” (70cm/ 27.5) diameter media rolls
IGUS energy chains for smooth motion control Reliable printing and drying at 6,027sqf/h (560sqm/h)
Aluminium frame and double carriage rail Spare-parts and inks inventory at all locations
Unwinder/winder dancing tension system (no pinch rollers) In-house color specialist for customized color profiling
Patented industrial jumbo roll feeder with airshaft rolls
Safety trigger system for printhead protection
Closed design system for safe operation and reduced noise
