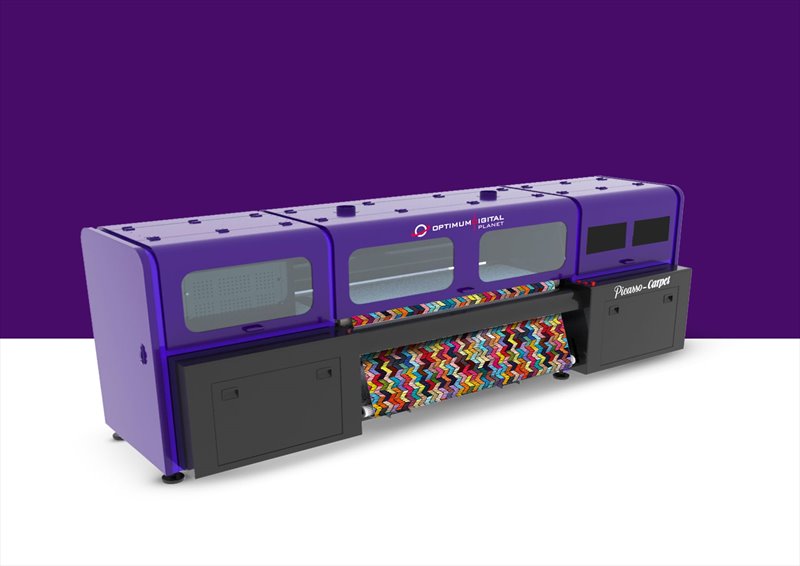

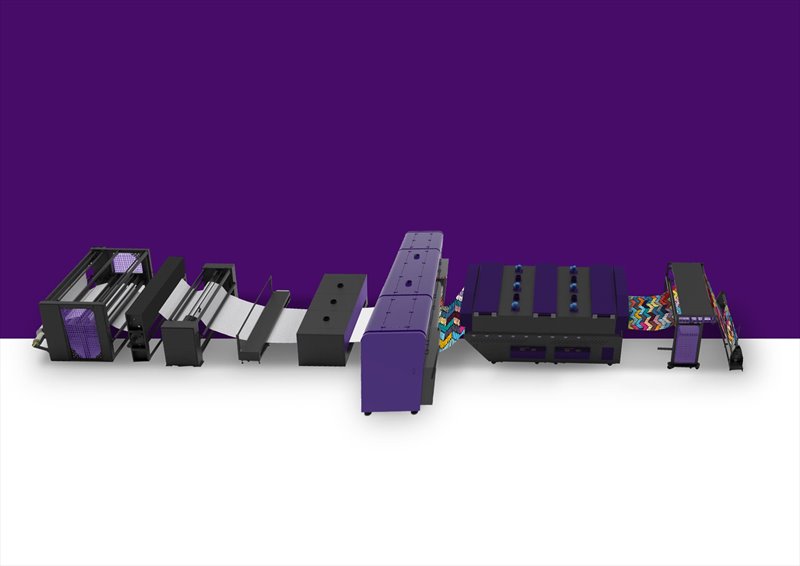

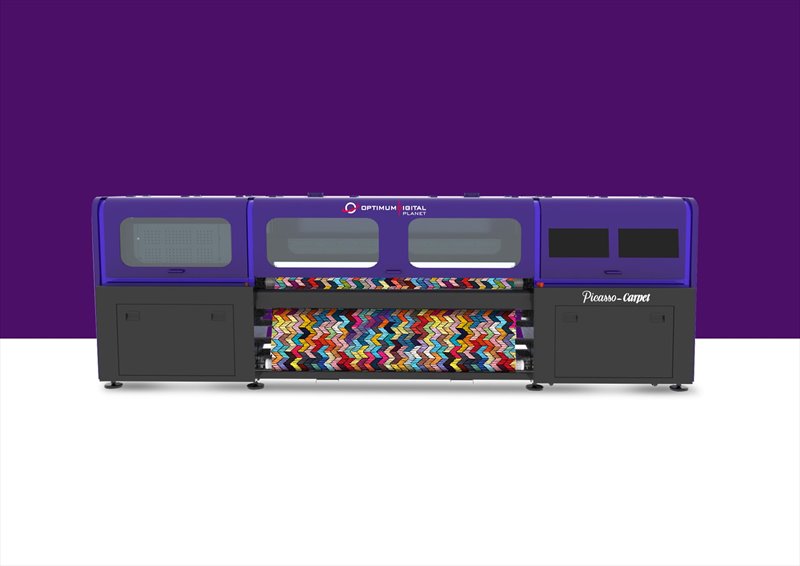

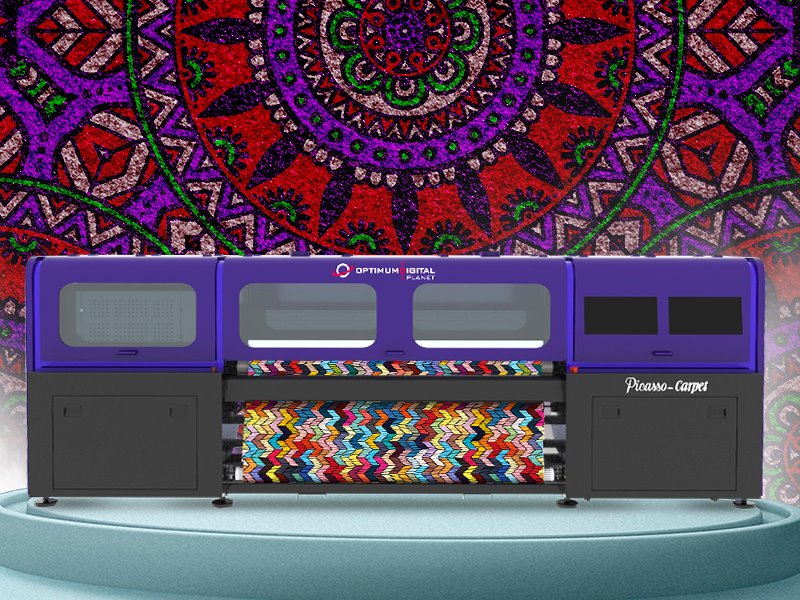

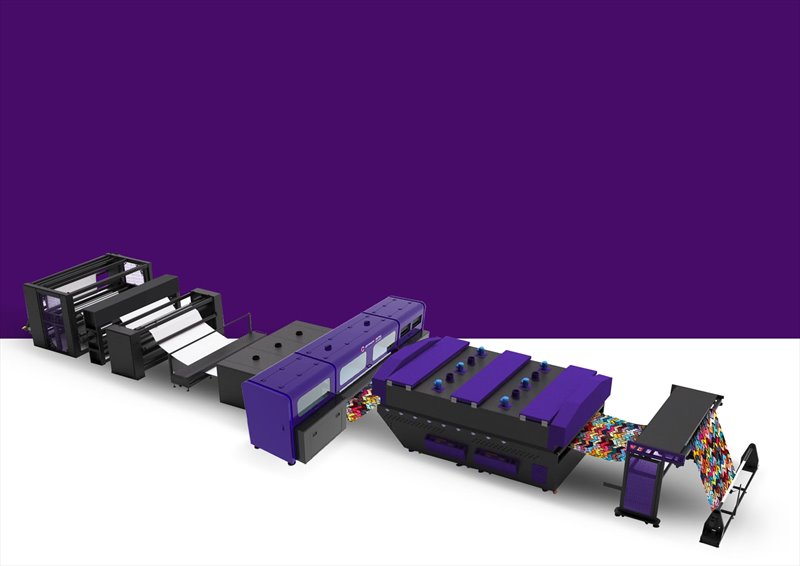

Picasso Carpet Optimum Digital Planet

INDUSTRIAL WATERLESS CARPET PRINTING SOLUTION

✓ Carpet Types: Print on Polyester Carpets or Rugs

✓ Printing Width: 3.2m & 5m

✓ Durable Prints: Produce Machine Washable & Stain-Resistant Prints

✓ No Color Mixing: Upload unlimited designs with over 16,000 color possibilities

✓ Digital System: One-off printed designs at no additional costs

✓ Waterless Printing: No-washing or pre-treatment required

Default Printhead	Industrial 360 DPI
Printhead Options	2 x CMYK
Print Width	Standard: 3.2m L Option: 5m
L Option	Industrial Tunnel Fixation
RIP Software	Neo-Stampa Optimum Digital Special Edition Caldera Textile Pro Enterprise
Power Requirment	Single Phase 220VAC 25A Three Phase 380VAC 63A
Ink Tank System	Open System - 5kg per color
Net Printer Weight	2850 kg ( 6,283 lbs)
Media Feeding System	Roll to Roll - Basket take up
Max Media Weight	500 kg
Media Type	Polyester Carpet or Rug
Graphical User Interface (GUI)	ODP Print 2
Production Speed	120 sqm/hr
Operating Space	L: 14m x W: 6m
