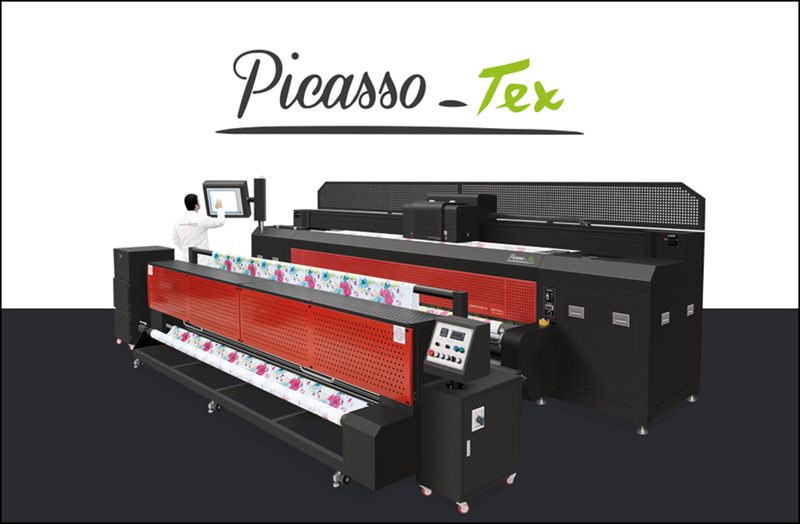

PICASSO TEX

TEXTILE PRINTER

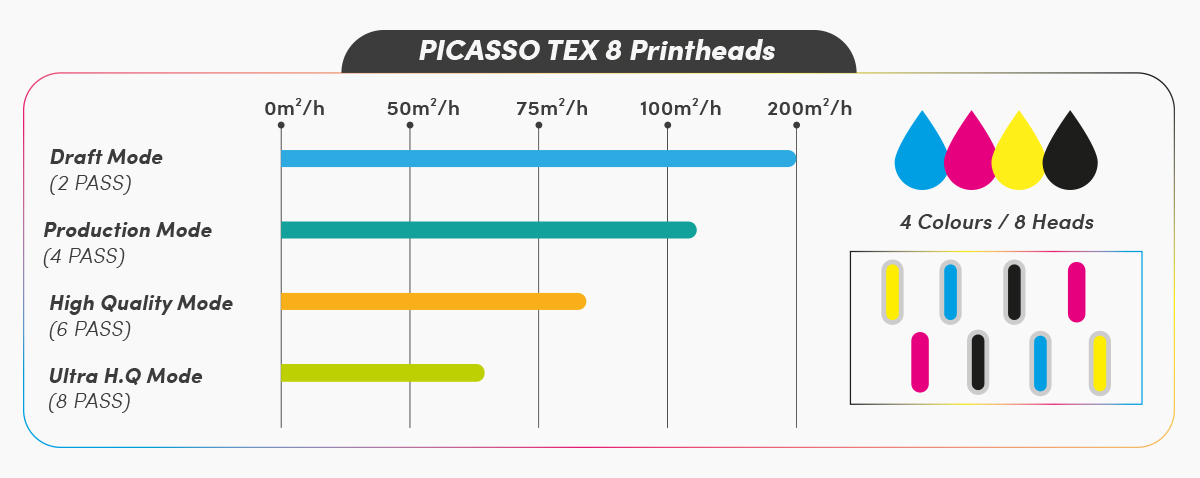

✓ Print Speed: 200m²/h

✓ Print Head: Konica Minolta

✓ Print Width: 3200mm

With 320 cm printing width, high sensitivity and user friendly interface; the optimum solutions for your enterprise.

Print Width

Up to 3200 mm

Technology

Drop - On - Demand Piezo Inkjet Technology

Control System

PLC System

Color Scale

Up to 8 Colours

Printhead

Konica Minolta 1024-i 6 pL

Printhead Quantity Up to 8

Resolutions

Up to 1440 DPI

Material Types

Bed Covers, Curtains, Wall Coverings, Seat Covers, Flags, Paper Printing, Table Clothes, T-Shirts, Clothing

Material Thickness

Up to 20 mm
RIP Software

Ergosoft Texprint or Caldera

Machine Weight 3580 kg.
Dimensions (With Fixation) 5500 mm x 3200 mm X 1950 mm
Without Fixation 5500 mm x 1800 mm X 1950 mm
Power Requirement 230V(+/-) 10% / 40A (Fixation unit:+ 50A) /50/60 HZ

Compressed Air 0,6 MPa @ 2 L / dk.
Automatic Cleaning Recycling System
Drying System Halogen & Fan
Hardware Internal Computer PC / LCD Monitor



dress-fashion printingFashion Printing



Carpet-printingCarpet Printing



Bed SheetsBed Sheets Printing



Seat-covers-printingSeat Covers Printing



Table-clothes-printingTable Clothes



Curtain-*printingCurtain Printing



T-shirtprintingT-Shirt Printing



flagprinting Flag Printing
